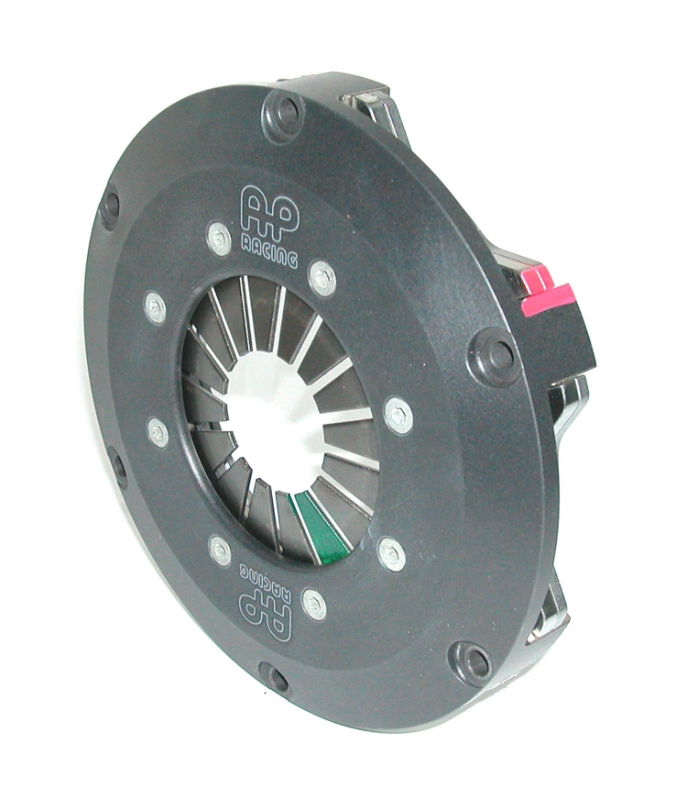

CP7382 clutches

Price: £659.93 £791.92

Stock Code: CP7382-CH80-SF

Select Your Item

2 In Stock
Description Related Products

Typical CP7382 Clutch Applications:

  • Race.
  • Hillclimb.

Features:

  • Push Type.

  • Stepped Flywheel Fixing.

  • 6 bolt, one piece cover and lugs.

Torque Capacity Nm (lbs/ft) - CP7382-CH80-SF - 636 (469) - CP7382-NH80-SF - 263 (194) - CP7382-OH80-SF - 421 (310)

Release Load - Max Peak New - daN - CP7382-CH80-SF - 350 - CP7382-NH80-SF - 160 - CP7382-OH80-SF - 240

Release Load - Max Peak Worn - daN - CP7382-CH80-SF - 440 - CP7382-NH80-SF - 220 - CP7382-OH80-SF - 330

Set-up Height - New - CP7382-CH80-SF - 37.01 / 34.64mm - CP7382-NH80-SF - 36.92 / 34.55mm - CP7382-OH80-SF - 37.66 / 35.29mm

Set-up Height - Max Worn - CP7382-CH80-SF - 39.68mm - CP7382-NH80-SF - 39.59mm - CP7382-OH80-SF - 40.34mm

Clutch "Wear In" 0.75mm

Weight (Excluding D/Plates) Kg 2.80

Assembly Intertia (Excluding D/Plates) - Kgm² 0.0182

CP8300 Type - Driven Plate & Hub Inertia (Kgm²) 0.0032

Release Bearing - Outer race rotates - CP3457-2 or -10 - Inner race rotates - CP3457-6

Driven Plate Thickness New 7.11mm Nom. Worn 6.67mm Min.

Driven Plate Types cp8300 type driven plate - Bonded 3 paddle x 2 cp8400 type driven plate - Bonded 4 paddle x 2

Spare Parts Part Numbers

  • Main Pressure Plate CP3021-102
  • Intermediate Pressure Plate CP3592-106
  • Wear Clips CP4112-102
