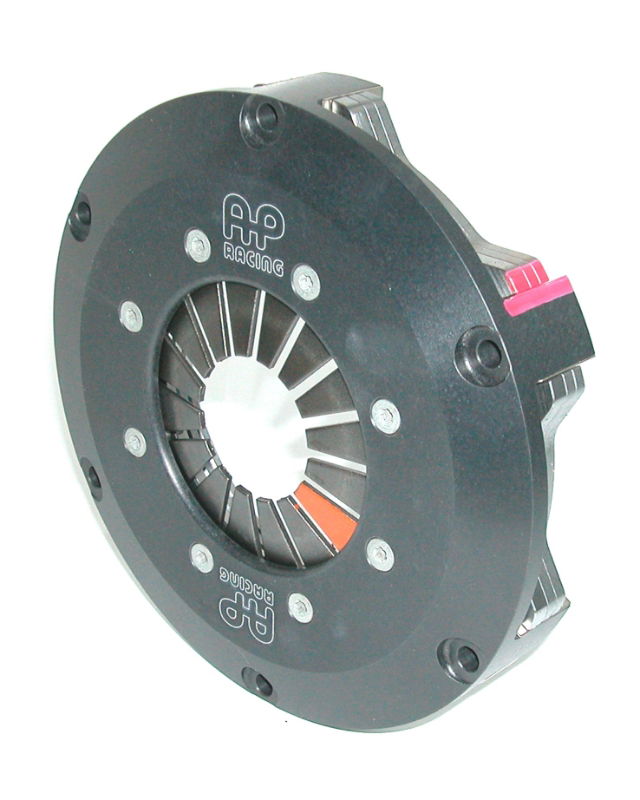

CP7373 clutches

Price: £689.86 £827.83

Stock Code: CP7373-CE90-SF

Select Your Item

2 In Stock
Description Related Products

Typical CP7373 Clutch Applications: - Circuit Race. (High Powered Engines)

Features:

  • Push Type.

  • Stepped Flywheel Fixing.

  • 6 bolt, one piece cover and lugs.

Torque Capacity Nm (lbs/ft) - CP7373-CE90-SF - 1272 (938) - CP7373-NE90-SF - 491 (362) - CP7373-OE90-SF - 798 (588)

Release Load - Max Peak New - daN - CP7373-CE90-SF - 350 - CP7373-NE90-SF - 160 - CP7373-OE90-SF - 240

Release Load - Max Peak Worn - daN - CP7373-CE90-SF - 440 - CP7373-NE90-SF - 220 - CP7373-OE90-SF - 330

Set-up Height - New - CP7373-CE90-SF - 36.18 / 32.94mm - CP7373-NE90-SF - 36.16 / 32.90mm - CP7373-OE90-SF - 36.97 / 33.70mm

Set-up Height - Max Worn - CP7373-CE90-SF - 39.39mm - CP7373-NE90-SF - 39.37mm - CP7373-OE90-SF - 40.19mm

Clutch "Wear In" 0.75mm

Weight (Excluding D/Plates) Kg 3.34

Assembly Intertia (Excluding D/Plates) - Kgm² 0.0218

CP2012 Type Driven Plate & Hub Inertia (Kgm²) 0.0054

Release Bearing - Outer race rotates - CP3457-2 or -10 - Inner race rotates - CP3457-6

Driven Plate Thickness New = 2.63mm Nom. / Worn = 2.38mm Min.

Driven Plate Types

CP2012 type driven plate - back to back x 2 CP2012 type driven plate - centre plate x 1

CP2822 type driven plate - Gear Driven type x 1 CP2822 slider type driven plate x 2

Spare Parts Part Number

  • Main Pressure Plate CP3021-101
  • Intermediate Pressure Plate CP3592-106
  • Wear Clips CP3913-103 x 6
