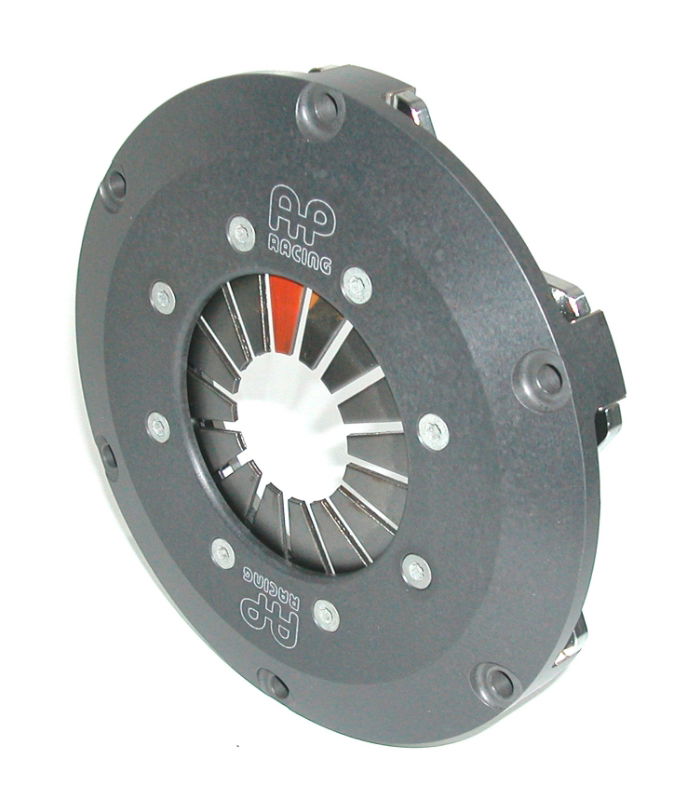

CP7381 clutches

Price: £474.53 £569.44

Stock Code: CP7381-CE80-SF

Select Your Item

3 In Stock
Description Related Products

Typical CP7381 Clutch Applications:

  • Race.
  • Hillclimb.

Features:

  • Push Type.

  • Stepped Flywheel Fixing.

  • 6 bolt, one piece cover and lugs.

Torque Capacity Nm (lbs/ft) - CP7381-CE80-SF - 413 (305) - CP7381-NE80-SF - 160 (118) - CP7381-OE80-SF - 259 (191)

Release Load - Max Peak New - daN - CP7381-CE80-SF - 350 - CP7381-NE80-SF - 160 - CP7381-OE80-SF - 240

Release Load - Max Peak Worn - daN - CP7381-CE80-SF - 440 - CP7381-NE80-SF - 160 - CP7381-OE80-SF - 330

Set-up Height - New - CP7381-CE80-SF - 27.43 / 25.14mm - CP7381-NE80-SF - 27.41 / 25.10mm - CP7381-OE80-SF - 28.23 / 25.90 mm

Set-up Height - Max Worn - CP7381-CE80-SF - 30.65mm - CP7381-NE80-SF - 30.62mm - CP7381-OE80-SF - 31.44mm

Clutch "Wear In" 0.75mm

Weight (Excluding D/Plates) Kg 2.24

Assembly Intertia - (Excluding Driven Plates - (Kgm²) 0.014

  • CP8300 Type - Driven Plate & Hub Inertia (Kgm²) 0.0016

Release Bearing - Outer race rotates - CP3457-2 or -10 - Inner race rotates - CP3457-6

Driven Plate Thickness New 7.11mm Nom. / Worn 6.29mm Min.

Driven Plate Types cp8300 type driven plate - Bonded 3 paddle x 1 cp8400 type driven plate - Bonded 4 paddle x 1

Spare Parts Part Numbers

  • Main Pressure Plate CP3108-103
  • Wear Clips CP6742-102 x 6
