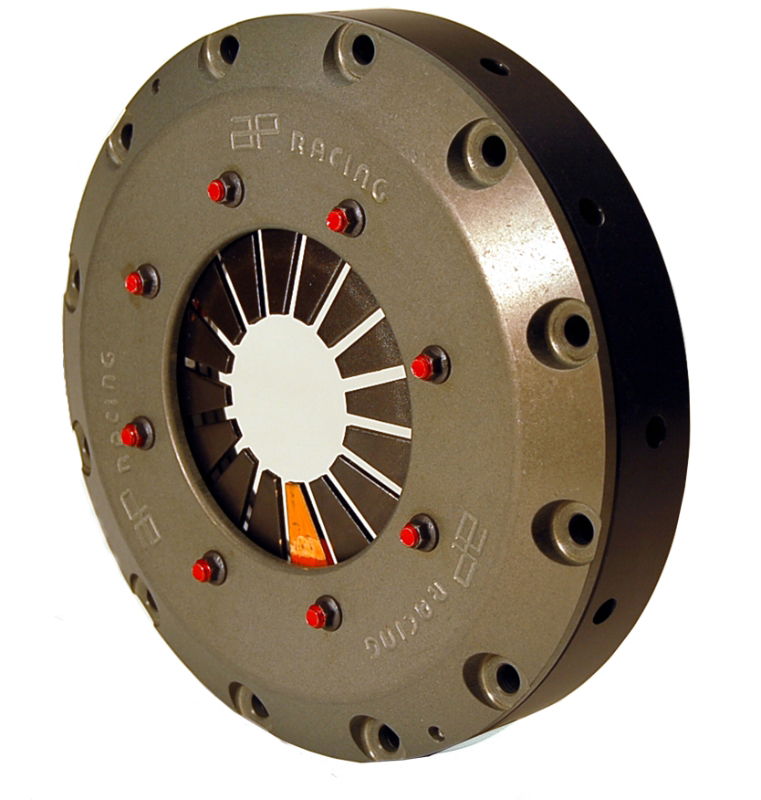

CP2817/CP2572 clutches

Price: £578.31 £693.97

Stock Code: CP2572GRN

Select Your Item

Back Order
Description Related Products

Typical CP2817 / CP2572 Clutch Applications: - Hillclimb. - Race. - Saloons.

Features:

  • Push Type.

    • Adaptor ring clutch, ring machined from aluminium alloy.

  • Stepped Flywheel Fixing.

  • 12 bolt aluminium alloy cover.

Torque Capacity Nm (lbs/ft) - CP2817/CP2572ACRV - 978 (721) - CP2817/CP2572AGRN - 394 (291) - CP2817/CP2572AORA - 631 (465)

Release Load - Max Peak New - daN - CP2817/CP2572ACRV - 350 - CP2817/CP2572AGRN - 160 - CP2817/CP2572AORA - 240

Release Load - Max Peak Worn - daN - CP2817/CP2572ACRV - 440 - CP2817/CP2572AGRN - 220 - CP2817/CP2572AORA - 330

Set-up Height - New - CP2817/CP2572ACRV - 37.43 / 40.42mm - CP2817/CP2572AGRN - 38.61 / 41.76mm - CP2817/CP2572AORA - 37.32 / 40.30mm

Set-up Height - Max Worn - CP2817/CP2572ACRV - 42.90mm - CP2817/CP2572AGRN - 44.25mm - CP2817/CP2572AORA - 42.79mm

Clutch "Wear In" 0.75mm

Weight (Including D/Plates) Kg - Back to Back - 5.23 - Gear Driven - 5.50

Complete Assy Intertia (Kgm²) - Back to Back - 0.030 - Gear Driven - 0.032

Driven Plate & Hub Inertia (Kgm²) 0.0060

Release Bearing - Outer race rotates - CP3457-2 or -10 - Inner race rotates - CP3457-16

Driven Plate Thickness New = 2.63mm Nom. / Worn = 2.38mm Min.

Driven Plate Types

cp2012 type driven plate - back to back x 2 cp2012 type driven plate - centre plate x 1

CP2822 type driven plate - Gear Driven type x 1 CP2822 slider type driven plate x 2

Spare Parts Part Numbers

  • Main Pressure Plate CP2613-106
  • Intermediate Pressure Plate CP2613-103
  • A-Ring Assembly CP2616-8
