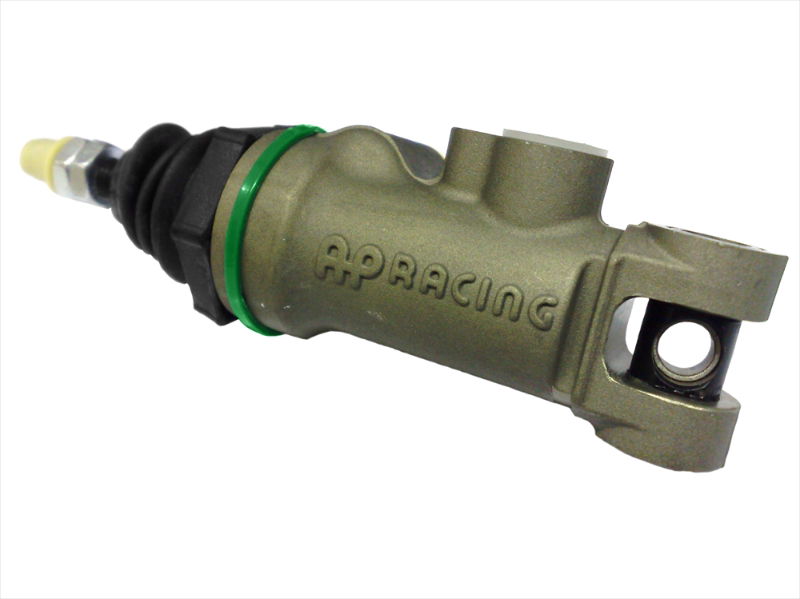

AP Racing CP6465 - Trunnion Mount, Short Stroke, Pull Type Master Cylinder

Price: £368.38 £442.06

Stock Code: CP6465-149PRME

Select Your Item

Back Order
Description Related Products

The AP Racing CP6465 master cylinder is the ultimate in master cylinder efficiency over traditional cylinder designs.

This master cylinder operates on the pull rather than push principle of other cylinders. It has a built in trunnion mounted in needle roller bearings for direct mounting to the balance bar.

AP Racing CP6465 Features:

Hard anodised Aluminium Alloy body.

Low profile inlet and outlet.

Extra Short travel to cut-off standard.

Special "plug in" inlet connection can be swaged directly to -4 hose.

Use with CP5520-2, 3, or -4 Trunnion type balance bar or purpose designed pedal box.

Choice of 9 bore sizes.

Rubber boots fitted as standard.


Weight .23 to .27Kg (.51 to .59lbs)

Full Stroke 25.4mm (1.00")

Outlet Hydraulic Thread M10 x 1.0

Pull Rod Thread PRME = M8 x 1.25

Special Inlet Fittings: - 75° Angle Fitting Kit CP6465-10. - Straight Fitting Kit CP6465-11. - 90° Angle Fitting Kit CP6465-12.
