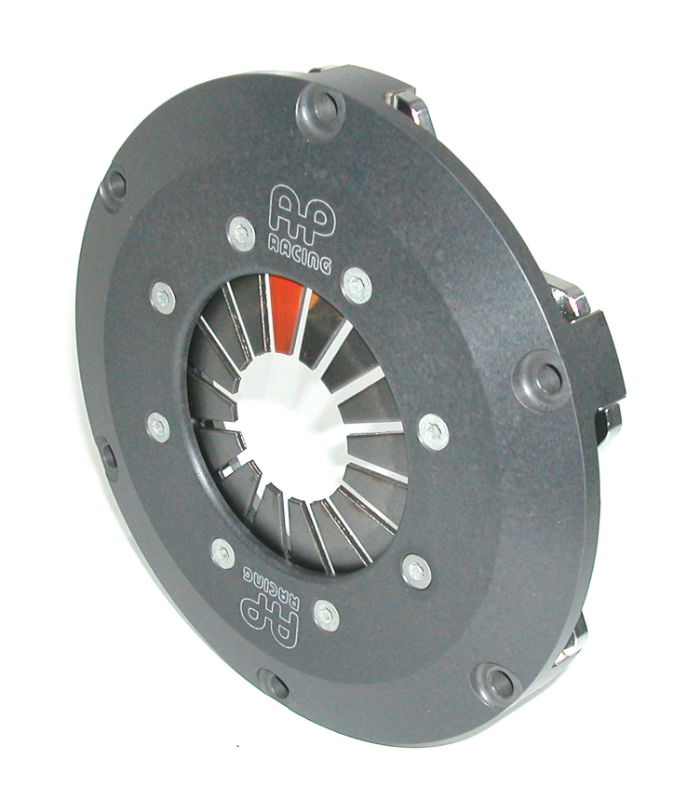

CP7371 clutches

Price: £491.13 £589.36

Stock Code: CP7371-NE90-SF

Select Your Item

3 In Stock
Description Related Products

Typical CP7371 Clutch Applications: - Race.

Features:

  • Push Type.

  • Stepped Flywheel Fixing.

  • 6 bolt, one piece cover and lugs.

Torque Capacity Nm (lbs/ft) - CP7371-CE90-SF - 424 (313) - CP7371-NE90-SF - 164 (121) - CP7371-OE90-SF - 266 (196)

Release Load - Max Peak New - daN - CP7371-CE90-SF - 350 - CP7371-NE90-SF - 160 - CP7371-OE90-SF - 240

Release Load - Max Peak Worn - daN - CP7371-CE90-SF - 440 - CP7371-NE90-SF - 220 - CP7371-OE90-SF - 330

Set-up Height - New - CP7371-CE90-SF - 21.30 / 19.05mm - CP7371-NE90-SF - 21.28 / 19.01mm - CP7371-OE90-SF - 22.10 / 19.81mm

Set-up Height - Max Worn - CP7371-CE90-SF - 24.52mm - CP7371-NE90-SF - 24.50mm - CP7371-OE90-SF - 25.31mm

Clutch "Wear In" 0.75mm

Weight (Excluding D/Plates) Kg 2.16

Assembly Intertia (Excluding D/Plates) - kgm² 0.0135

CP2012 Type -Driven Plate & Hub Inertia (Kgm²) 0.0018

Release Bearing - Outer race rotates - CP3457-2 or -10 - Inner race rotates - CP3457-6

Driven Plate Thickness New = 2.63mm Nom. / Worn = 1.22mm Min.

Driven Plate Types

CP4429 type driven plate - single back to back, recommended for high torque applications

CP2012 type driven plate

Spare Parts Part Numbers

  • Main Pressure Plate CP3021-101
  • Wear Clips CP3911-102 x 6
