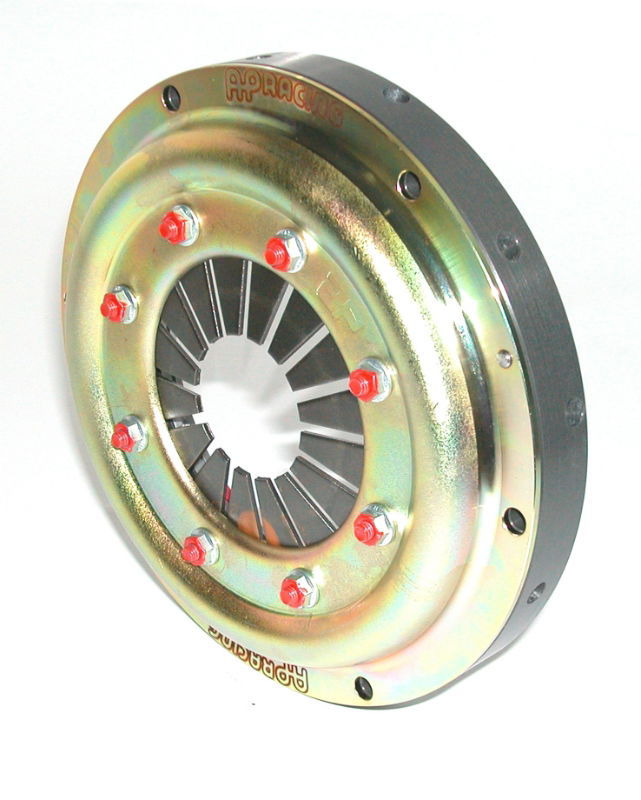

CP2125 clutches

Typical CP2125 Clutch Applications: - Race. - Rally.

Features:

• Push Type.

• Adaptor ring clutch.

• Stepped Fixing.

• 6 bolt cover, steel or aluminium alloy options.

Torque Capacity Nm (lbs/ft) - CP2125ACRV - 848 (625) - CP2125AGRN - 327 (241) - CP2125AORA - 532 (392)

Release Load - Max Peak New - daN - CP2125ACRV - 350 - CP2125AGRN - 160 - CP2125AORA - 240

Release Load - Max Peak Worn - daN - CP2125ACRV - 440 - CP2125AGRN - 220 - CP2125AORA - 330

Set-up Height - New - CP2125ACRV - 28.64 / 31.31mm - CP2125AGRN - 28.91 / 31.59mm - CP2125AORA - 30.02 / 32.66mm

Set-up Height - Max Worn - CP2125ACRV - 33.80mm - CP2125AGRN - 35.14mm - CP2125AORA - 24.07mm

Clutch "Wear In" 0.75mm

Weight (Including D/Plates) Kg Aluminium Cover - Back to Back - 3.85 - Nested - 3.92 - Gear Driven - 4.40

Weight (Including D/Plates) Kg Steel Cover - Back to Back - 4.15 - Nested - 4.22 - Gear Driven - 4.70

Complete Assy Intertia (Kgm²) Aluminium Cover - Back to Back - 0.023 - Nested - 0.023 - Gear Driven - 0.024

Complete Assy Intertia (Kgm²) Steel Cover - Back to Back - 0.025 - Nested - 0.025 - Gear Driven - 0.026

Driven Plate & Hub Inertia (Kgm²) - Back to Back - 0.0037 - Nested - 0.0038 - Gear Driven - 0.0040

Release Bearing - Outer race rotates - CP3457-2 or -10 - Inner race rotates - CP3457-6

Driven Plate Thickness New = 2.63mm Nom. / Worn = 2.25mm Min.

Driven Plate Types cp2012 type driven plate - back to back CP2567 type driven plate - Nested type CP3822 type driven plate - Gear Driven type CP3822-10FM3 outer d/plate - 1"x23 spline CP2822 slider type driven plate

Spare Parts Part Numbers - Main Pressure Plate CP2616.-103 - Intermediate Pressure Plate CP2613-103 - A-Ring Assembly CP2012-162
