CP7855 - Bearing Mount, Short Stroke, Push Type

Price: £213.98 £256.78

Stock Code: CP7855-88PRTE

Select Your Item

Back Order
Description

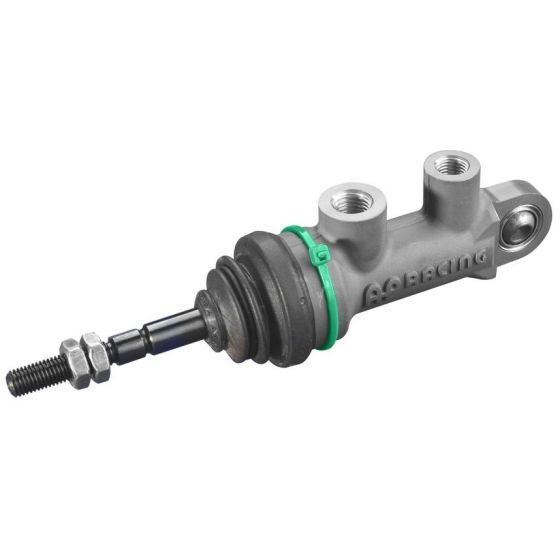

The CP7855 AP Racing master cylinder is a compact forged bodied bearing mounted master cylinder suitable for all brake and clutch applications. This master features an extra-short travel to cut off is standard. The AP Racing CP7855 master cylinder is available in 10 bore sizes from 14.0mm to 25.4mm.

Weight0.169kg - 0.198kg (0.37lbs - 0.44lbs)
Full Stroke-88PRTE to -94PRTE = 30.0mm (1.18"), -95PRTE & -96PRTE = 28.0mm (1.10")
Travel To Cut-Off Short0.48 to 0.63mm (0.019 to 0.25")
Inlet Hydraulic Thread7/16" x 20UNF
Outlet Hydraulic Thread3/8" x 24UNF
Bore Sizes Available Part Numbers14mm, 15mm, 15.9mm (0.625"),17.8mm (0.700"), 19.1mm (0.750"), 20.6mm (0.812"), 22.2mm (0.875"), 23.8mm (0.937"), 25.4mm (1.00").
