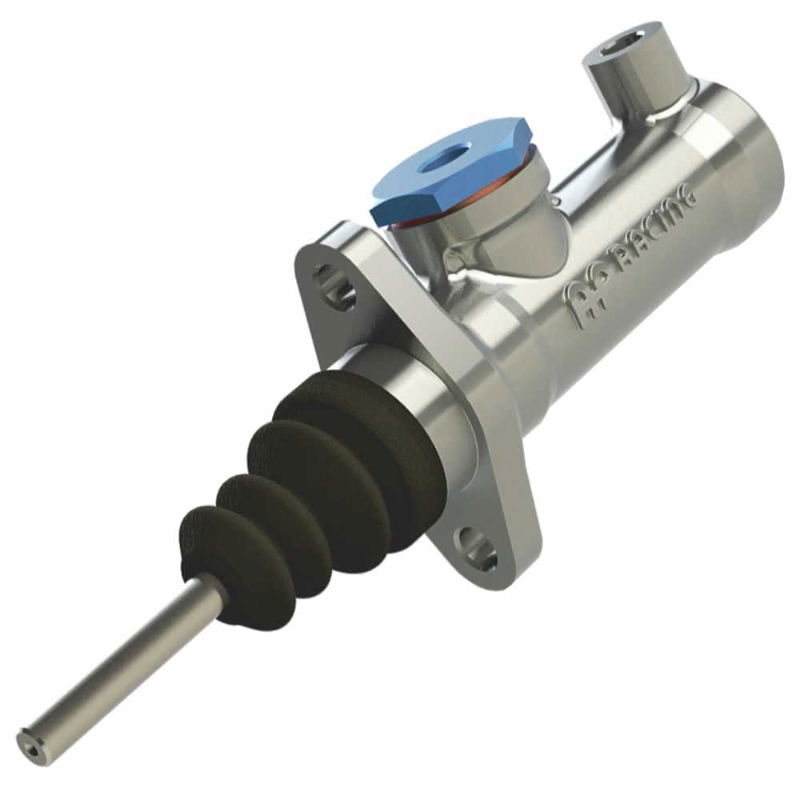

AP Racing CP9093 - Flange Mount, Short Stroke, Push Type Master Cylinder

Price: £305.23 £366.28

Stock Code: CP9093-90PRM163

Select Your Item

Back Order
Description

The CP9093 AP Racing master cylinder is a forged bodied flange mounted master cylinder suitable for all brake and clutch applications including ABS. Short travel to cut off is standard. The AP Racing CP9093 master cylinder is available in 7 bore sizes from 15.9mm to 25.4mm.

Weight0.37Kg (0.81lbs)
Full Stroke30.0mm (1.18")
Travel To Cut-Off Short0.68 to 1.09mm (0.27 to 0.43")
Inlet Hydraulic Thread7/16" x 20UNF
Outlet Hydraulic Thread3/8" x 24UNF
Push Rod Threads AvailablePRM = M8 x 1.25mm- PRT = 5/16" UNF
Push Rod Length from Mounting Flange163mm (6.42")
Bore Sizes Available Part Numbers15.9mm (0.625"), 17.8mm (0.700"), 19.1mm (0.750"), 20.6mm (0.812"), 22.2mm (0.875"), 23.8mm (0.937"), 25.4mm (1.00").
