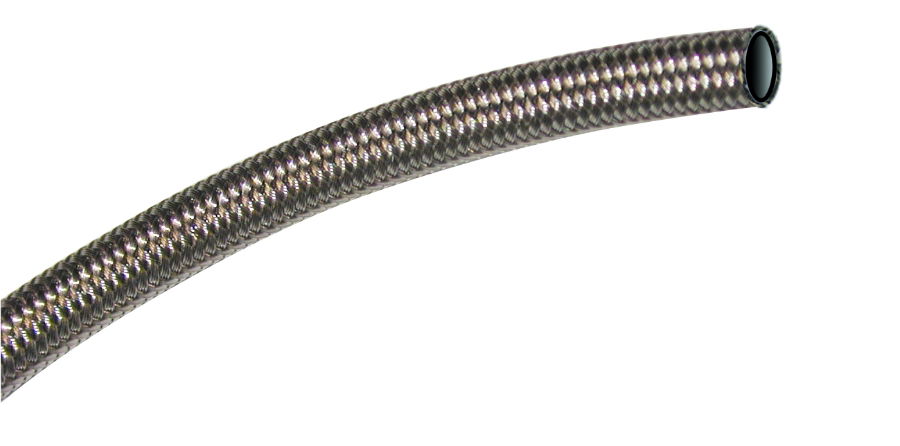

This clutch / brake hose is suitable for use with brake or clutch fluid. Sold by the metre. For most four-wheeled vehicles brake-lines us -3. Other sizes are available upon request. For best results use '600 Series' fittings.
Goodridge's 600 series hose can resist expansion which normally would occur under high pressure and temperature. This provides consistent brake and clutch pedal feel/pressure which gives a firmer and more efficient operation.
Offering protection against brasion and fire, these hoses are also recommended for all pressure gauge lines.
Part Number |
Bore Size |
PTFE Wall |
Braid O/D |
Working Pressure |
Burst Pressure |
Weight |
Temperature Range |
Min Bend Radius |
MM |
MM |
MM |
BAR |
PSI |
BAR |
PSI |
KG/M |
MIN °C |
MAX °C |
MM |
600-03 |
3.5 |
1.0 |
6.45 |
290 |
4206 |
870 |
12618 |
0.088 |
-20 |
85 |
38 |
